99 mm x 107 mm x 215 mm

About 756 g (excluding the power adapter)

*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.

• White

Transmission Standard:
802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO

Wireless Transmission Rate:
DBDC, 1167 Mbps

Wireless Frequency Band: 2.4 GHz & 5 GHz, dual-band auto-selection

Antenna Type:
Dual-band Wi-Fi antenna

CPU:
Balong 5000 chipset, GigaHome dual-band Wi-Fi chipset

Network Port:

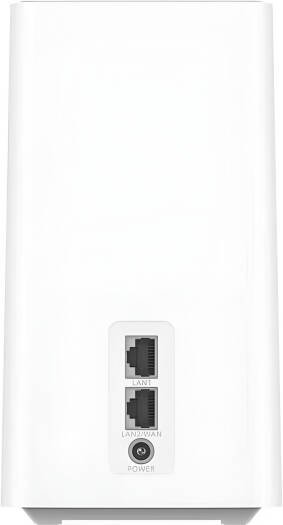

One Wan / Lan GE port, one Lan GE port, one TEL port, one SIM card slot (Nano-SIM)

Key: Reset / Power / H, support HiLink device one-button pairing, compatible with WPS

Led Indicator: 5G / 4G / Wi-Fi

External Antenna: Two 5G antenna extension ports, allowing users to purchase antennas

Power: < 24 W
AC / DC Power Supply: AC: 100 V – 240 V 50 Hz / 60 Hz, DC: 12V / 2A
Temperature: Operating temperature: 0°C ~ 40°C, storage temperature: -20°C ~ +70°C
Humidity: 5% ~ 95% (non-condensing)

Communication Standard: 3GPP Release 15
Applicable Network: 5G / 4G
Network Mode: NSA / SA / LTE, SA capabilities depend on the available network and software version
5G Transmission Rate: 1.65 Gbps / 250 Mbps(Theoretical value. The actual rate depends on the operator)
LTE Transmission Rate: 1.6 Gbps / 150 Mbps (Theoretical value. The actual rate depends on the operator)
Antenna Type: 5G / LTE main and diversity antennas

HUAWEI 5G CPE: 1
Power Adapter: 1
Quick Start: 1
Ethernet Cable: 1
